- The blades can be adjusted continuously between 0°and 90°;
- The adjustment switch is marked with positions from 0°to 90°, and the blades can be secured at a specific angle with screws to control a specific airflow.

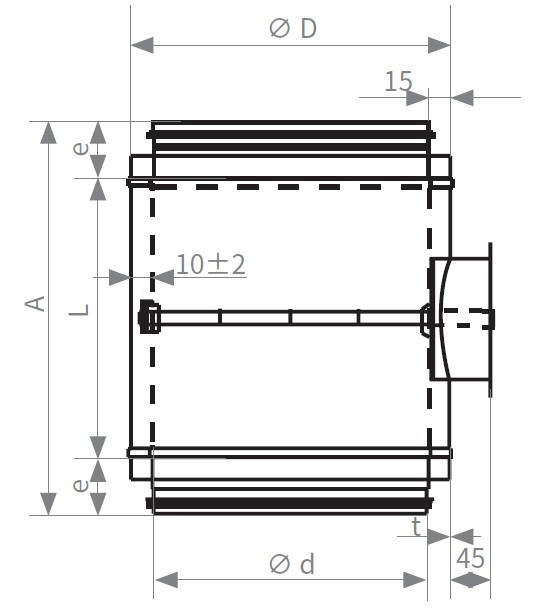

| Specs | d | D | A | L | e | t | kg |
| 80 | 78 | 110 | 195 | 128 | 33.5 | 0.5 | 0.59 |
| 100 | 98 | 130 | 195 | 128 | 33.5 | 0.5 | 0.75 |
| 125 | 123 | 155 | 195 | 128 | 33.5 | 0.5 | 0.93 |
| 150 | 148 | 180 | 195 | 128 | 33.5 | 0.5 | 1.07 |
| 160 | 158 | 190 | 195 | 128 | 33.5 | 0.5 | 1.14 |
| 175 | 173 | 205 | 194 | 119 | 37.5 | 0.5 | 1.23 |
| 180 | 178 | 210 | 194 | 119 | 37.5 | 0.5 | 1.27 |
| 200 | 198 | 230 | 194 | 119 | 37.5 | 0.5 | 1.39 |
| 225 | 223 | 255 | 211 | 136 | 37.5 | 0.5 | 1.67 |
| 250 | 248 | 280 | 236 | 161 | 37.5 | 0.5 | 2.03 |
| 300 | 298 | 330 | 299 | 204 | 47.5 | 0.5 | 2.96 |
| 315 | 313 | 345 | 299 | 204 | 47.5 | 0.5 | 3.1 |
| 350 | 348 | 378 | 336 | 241 | 47.5 | 0.6 | 4.45 |
| 355 | 353 | 398 | 355 | 360 | 47.5 | 0.6 | 4.95 |
| 400 | 398 | 438 | 386 | 291 | 47.5 | 0.6 | 5.73 |
| 450 | 448 | 478 | 450 | 355 | 47.5 | 0.6 | 7.45 |
| 500 | 498 | 528 | 500 | 405 | 47.5 | 0.8 | 11.9 |
