Spigot Reducer – Stamped (Insulated)

Product Number

Enquire

Specification

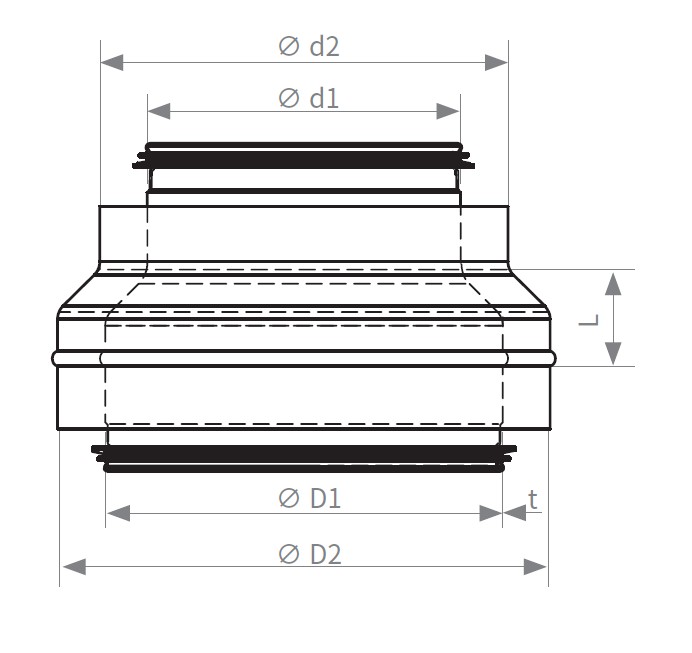

Dimension

Specs d1 d2 D1 D2 L t kg
100/80 78 110 98 132 27 0.5 0.24
125/80 78 110 123 157 39.5 0.5 0.33
125/100 98 130 123 157 40.5 0.5 0.36
150/100 98 130 148 180 40.5 0.5 0.45
150/125 123 155 148 180 28 0.5 0.42
160/100 98 130 158 192 47 0.5 0.45
160/125 123 155 158 192 35.5 0.5 0.42
160/150 148 180 158 190 24.5 0.5 0.41
180/125 123 155 178 210 43 0.5 0.58
180/150 148 180 178 210 30.5 0.5 0.52
180/160 158 190 178 210 25.5 0.5 0.51
200/100 98 130 198 232 63 0.5 0.68
200/125 123 155 198 232 50.5 0.5 0.6
200/150 148 180 198 230 39.5 0.5 0.63
200/160 158 190 198 232 36.5 0.5 0.52
200/180 178 210 198 230 25.5 0.5 0.57
250/125 123 155 248 280 78 0.5 0.87
250/150 148 180 248 280 65.5 0.5 0.91
250/160 158 190 248 282 62.5 0.5 0.82
250/180 178 210 248 280 50.5 0.5 0.86
250/200 198 230 248 282 38 0.5 0.68
300/200 198 230 298 330 51.5 0.5 1.14
300/250 248 280 298 330 26.5 0.5 0.97
315/160 158 190 313 345 83 0.5 1.39
315/200 198 230 313 345 63 0.5 1.24
315/250 248 280 313 345 38 0.5 1.06
Note:
