Spigot Reducer – Handmade (Insulated)

Product Number

Enquire

Specification

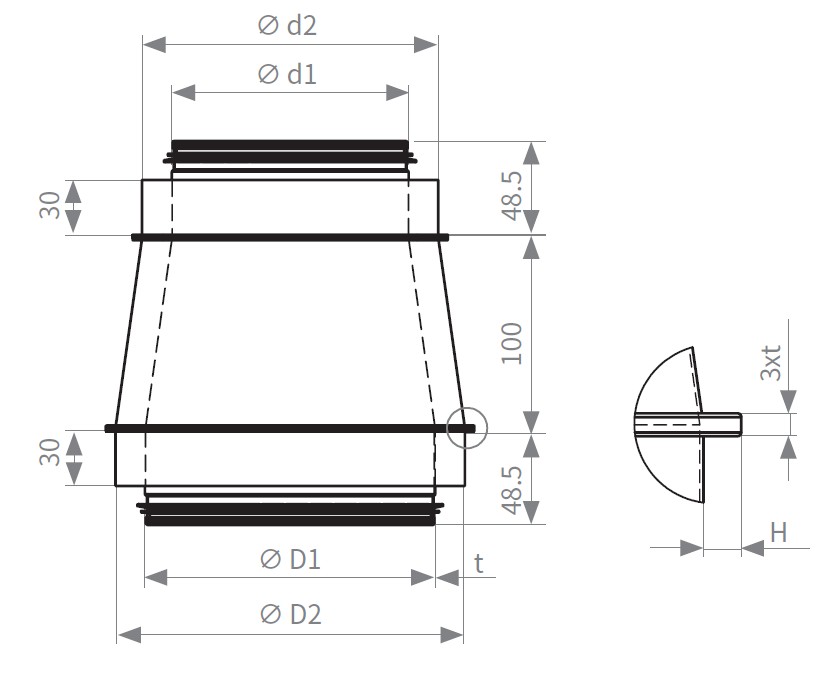

Dimension

Specs d1 d2 D1 D2 H t kg
150/80 78 110 148 180 5 0.5 0.88
160/80 78 110 158 190 5 0.5 0.92
180/80 78 110 178 210 7 0.5 1.01
200/80 78 110 198 230 7 0.5 1.1
250/80 78 110 248 280 7 0.5 1.35
300/80 78 110 298 330 7 0.5 1.64
315/80 78 110 313 345 7 0.6 1.98
350/80 78 110 348 378 7 0.6 2.23
355/80 78 110 353 398 7 0.6 2.26
400/80 78 110 398 438 7 0.6 2.69
450/80 78 110 448 478 7 0.8 3.09
500/80 78 110 498 528 7 0.8 4.51
180/100 98 130 178 210 7 0.5 1.06
250/100 98 130 248 280 7 0.5 1.38
300/100 98 130 298 330 7 0.5 1.67
315/100 98 130 313 345 7 0.6 2.01
350/100 98 130 348 378 7 0.6 2.26
355/100 98 130 353 398 7 0.6 2.29
400/100 98 130 398 438 7 0.6 2.72
450/100 98 130 448 478 7 0.8 3.1
500/100 98 130 498 528 7 0.8 4.54
300/125 123 155 298 330 7 0.5 1.7
315/125 123 155 313 345 7 0.6 2.04
350/125 123 155 348 378 7 0.6 2.3
355/125 123 155 353 398 7 0.6 2.32
400/125 123 155 398 438 7 0.6 2.74
450/125 123 155 448 478 7 0.8 3.13
500/125 123 155 498 528 7 0.8 4.56
300/150 148 180 298 330 7 0.5 1.74
315/150 148 180 313 345 7 0.6 2.08
350/150 148 180 348 378 7 0.6 2.33
355/150 148 180 353 398 7 0.6 2.36
400/150 148 180 398 438 7 0.6 2.77
450/150 148 180 448 478 7 0.8 3.15
500/150 148 180 498 528 7 0.8 4.58
300/160 158 190 298 330 7 0.5 1.76
350/160 158 190 348 378 7 0.6 2.34
355/160 158 190 353 398 7 0.6 2.37
400/160 158 190 398 438 7 0.6 2.78
450/160 158 190 448 478 7 0.8 3.15
500/160 158 190 498 528 7 0.8 4.57
300/180 178 210 298 330 7 0.5 1.78
315/180 178 210 313 345 7 0.6 2.13
350/180 178 210 348 378 7 0.6 2.37
355/180 178 210 353 398 7 0.6 2.39
400/180 178 210 398 438 7 0.6 2.79
450/180 178 210 448 478 7 0.8 3.17
500/180 178 210 498 528 7 0.8 4.58
350/200 198 230 348 378 7 0.6 2.39
355/200 198 230 353 398 7 0.6 2.42
400/200 198 230 398 438 7 0.6 2.8
450/200 198 230 448 478 7 0.8 3.17
500/200 198 230 498 528 7 0.8 4.58
350/250 248 280 348 378 7 0.6 2.46
355/250 248 280 353 398 7 0.6 2.48
400/250 248 280 398 438 7 0.6 2.83
450/250 248 280 448 478 7 0.8 3.18
500/250 248 280 498 528 7 0.8 4.56
315/300 298 330 313 345 7 0.6 2.38
350/300 298 330 348 378 7 0.6 2.55
355/300 298 330 353 398 7 0.6 2.57
400/300 298 330 398 438 7 0.6 2.88
450/300 298 330 448 478 7 0.8 3.19
500/300 298 330 498 528 7 0.8 4.53
350/315 313 345 348 378 7 0.6 2.59
355/315 313 345 353 398 7 0.6 2.61
400/315 313 345 398 438 7 0.6 2.9
450/315 313 345 448 478 7 0.8 3.2
500/315 313 345 498 528 7 0.8 4.52
400/350 348 378 398 438 7 0.6 2.95
450/350 348 378 448 478 7 0.8 3.23
500/350 348 378 498 528 7 0.8 4.5
400/355 353 398 398 438 7 0.6 2.95
450/355 353 398 448 478 7 0.8 3.23
500/355 353 398 498 528 7 0.8 4.5
450/400 398 438 448 478 7 0.6 3.3
500/400 398 438 498 528 7 0.8 4.5
500/450 448 478 498 528 7 0.8 4.56
Note:
Specs 355, 450, 500 use L-shaped rubber rings and steel straps.
