Reducer – Stamped

Product Number

Enquire

Specification

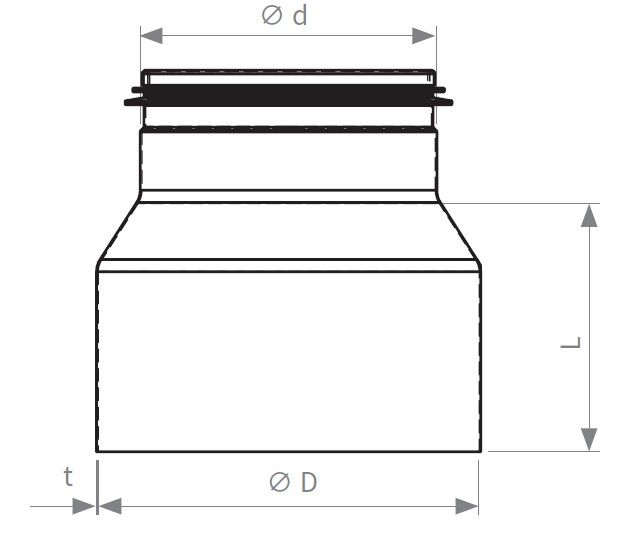

Dimension

Specs D d L t kg
100/80 100 78 65 0.5 0.14
125/80 125 78 80 0.5 0.16
160/80 160 78 95 0.5 0.23
125/100 125 98 54 0.5 0.16
150/100 150 98 75 0.5 0.19
160/100 160 98 77 0.5 0.19
180/100 180 98 88 0.5 0.27
200/100 200 98 102 0.5 0.36
150/125 150 123 64 0.5 0.19
160/125 160 123 69 0.5 0.23
180/125 180 123 85 0.5 0.28
200/125 200 123 90 0.5 0.37
160/150 160 148 65 0.5 0.25
200/150 200 148 79 0.5 0.3
180/160 180 158 74 0.5 0.25
200/160 200 158 66 0.6 0.31
250/160 250 158 102 0.6 0.46
200/180 200 178 57 0.5 0.28
250/180 250 178 86 0.6 0.5
250/200 250 198 75 0.6 0.42
Note:
