Reducer – Handmade

Product Number

Enquire

Specification

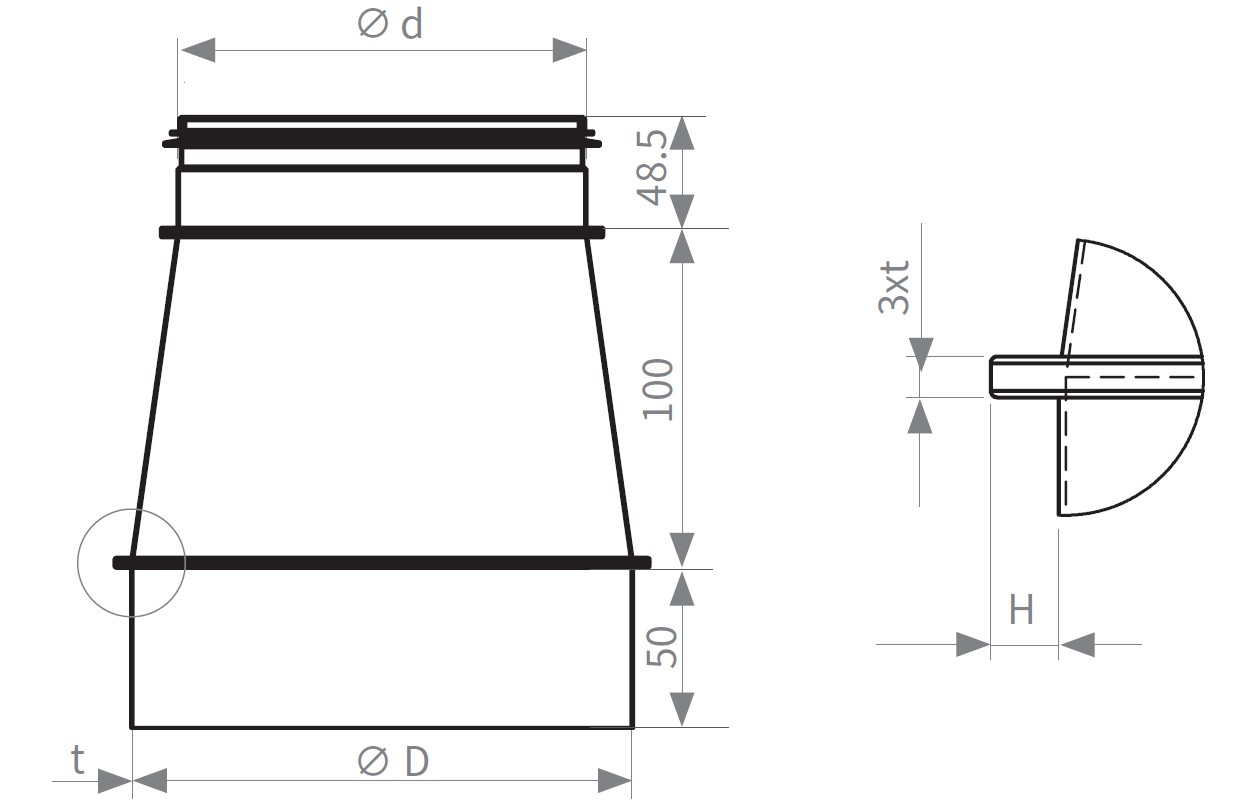

Dimension

Specs d D H t kg
150/80 78 150 5 0.5 0.38
180/80 78 180 7 0.5 0.44
200/80 78 200 7 0.5 0.48
250/80 78 250 7 0.5 0.6
300/80 78 300 7 0.5 0.73
315/80 78 315 7 0.5 0.75
350/80 78 350 7 0.6 1.02
355/80 78 355 7 0.6 1.04
400/80 78 400 7 0.6 1.22
450/80 78 450 7 0.6 1.44
500/80 78 500 7 0.8 2.15
250/100 98 250 7 0.5 0.62
300/100 98 300 7 0.5 0.75
315/100 98 315 7 0.5 0.77
350/100 98 350 7 0.6 1.05
355/100 98 355 7 0.6 1.06
400/100 98 400 7 0.6 1.24
450/100 98 450 7 0.6 1.45
500/100 98 500 7 0.8 2.17
250/125 123 250 7 0.5 0.65
300/125 123 300 7 0.5 0.78
315/125 123 315 7 0.5 0.79
350/125 123 350 7 0.6 1.07
355/125 123 355 7 0.6 1.09
400/125 123 400 7 0.6 1.26
450/125 123 450 7 0.6 1.47
500/125 123 500 7 0.8 2.19
160/150 148 160 5 0.5 0.51
180/150 148 180 7 0.5 0.54
250/150 148 250 7 0.5 0.68
300/150 148 300 7 0.5 0.8
315/150 148 315 7 0.5 0.81
350/150 148 350 7 0.6 1.09
355/150 148 355 7 0.6 1.11
400/150 148 400 7 0.6 1.28
450/150 148 450 7 0.6 1.49
500/150 148 500 7 0.8 2.2
300/160 158 300 7 0.5 0.81
315/160 158 315 7 0.5 0.77
350/160 158 350 7 0.6 1.1
355/160 158 355 7 0.6 1.12
400/160 158 400 7 0.6 1.29
450/160 158 450 7 0.6 1.49
500/160 158 500 7 0.8 2.21
250/180 178 250 7 0.5 0.72
300/180 178 300 7 0.5 0.83
315/180 178 315 7 0.5 0.83
350/180 178 350 7 0.6 1.12
355/180 178 355 7 0.6 1.13
400/180 178 400 7 0.6 1.3
450/180 178 450 7 0.6 1.5
500/180 178 500 7 0.8 2.21
300/200 198 300 7 0.5 0.85
315/200 198 315 7 0.5 0.85
350/200 198 350 7 0.6 1.13
355/200 198 355 7 0.6 1.15
400/200 198 400 7 0.6 1.29
450/200 198 450 7 0.6 1.51
500/200 198 500 7 0.8 2.22
300/250 248 300 7 0.5 0.91
315/250 248 315 7 0.5 0.9
350/250 248 350 7 0.6 1.18
355/250 248 355 7 0.6 1.19
400/250 248 400 7 0.6 1.32
450/250 248 450 7 0.6 1.53
500/250 248 500 7 0.8 2.22
315/300 298 315 7 0.5 0.96
350/300 298 350 7 0.6 1.23
355/300 298 355 7 0.6 1.24
400/300 298 400 7 0.6 1.37
450/300 298 450 7 0.6 1.55
500/300 298 500 7 0.8 2.22
350/315 313 350 7 0.6 1.25
355/315 313 355 7 0.6 1.26
400/315 313 400 7 0.6 1.38
450/315 313 450 7 0.6 1.55
500/315 313 500 7 0.8 2.22
355/350 348 355 7 0.6 1.32
400/350 348 400 7 0.6 1.42
450/350 348 450 7 0.6 1.57
500/350 348 500 7 0.8 2.22
400/355 353 400 7 0.6 1.43
450/355 353 450 7 0.6 1.57
500/355 353 500 7 0.8 2.22
450/400 398 450 7 0.6 1.61
500/400 398 500 7 0.8 2.23
500/450 448 500 7 0.8 2.27
Note:
Specs 355, 450, 500 use L-shaped rubber rings and steel straps.
