Reducer – Handmade (Insulated)

Product Number

Enquire

Specification

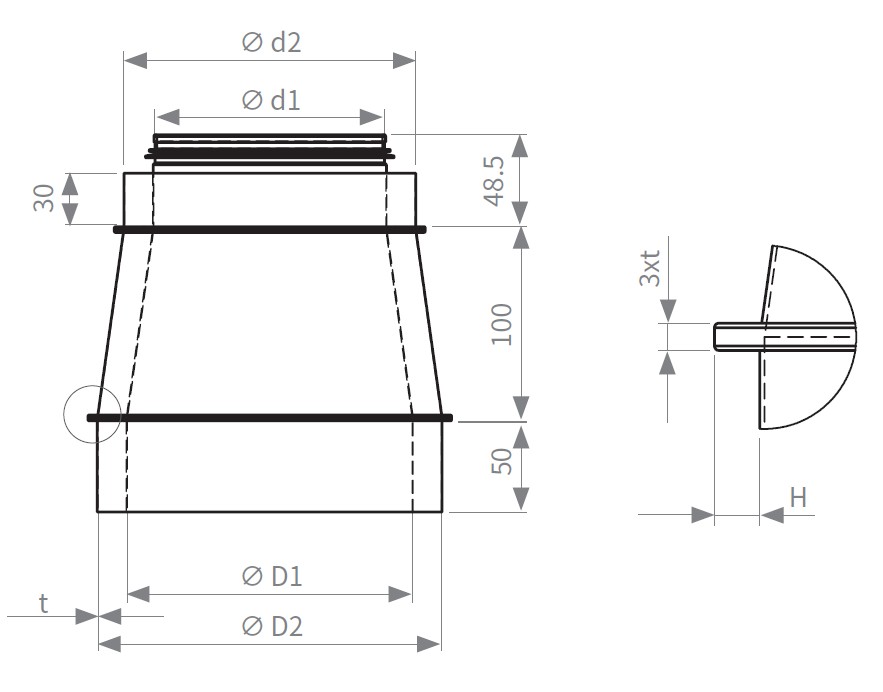

Dimension

Specs d1 d2 D1 D2 H t kg
150/80 78 110 150 182 5 0.5 0.74
180/80 78 110 180 212 7 0.5 0.86
200/80 78 110 200 232 7 0.5 0.91
250/80 78 110 250 282 7 0.5 1.14
300/80 78 110 300 332 7 0.5 1.41
315/80 78 110 315 347 7 0.6 1.76
350/80 78 110 350 380 7 0.6 1.95
355/80 78 110 355 400 7 0.6 2
400/80 78 110 400 440 7 0.6 2.4
450/80 78 110 450 480 7 0.8 2.8
500/80 78 110 500 530 7 0.8 4.27
150/100 98 130 150 182 5 0.5 0.58
250/100 98 130 250 282 7 0.5 1.17
300/100 98 130 300 332 7 0.5 1.44
315/100 98 130 315 347 7 0.6 1.8
350/100 98 130 350 380 7 0.6 1.99
355/100 98 130 355 400 7 0.6 2.03
400/100 98 130 400 440 7 0.6 2.47
450/100 98 130 450 480 7 0.8 2.82
500/100 98 130 500 530 7 0.8 4.29
150/125 123 155 150 182 5 0.5 0.6
250/125 123 155 250 282 7 0.5 1.2
300/125 123 155 300 332 7 0.5 1.48
315/125 123 155 315 347 7 0.6 1.82
350/125 123 155 350 380 7 0.6 2.02
355/125 123 155 355 400 7 0.6 2.07
400/125 123 155 400 440 7 0.6 2.46
450/125 123 155 450 480 7 0.8 2.84
500/125 123 155 500 530 7 0.8 4.32
160/150 148 180 160 192 5 0.5 0.7
180/150 148 180 180 212 7 0.5 1.03
200/150 148 180 200 232 7 0.5 0.83
250/150 148 180 250 282 7 0.5 1.27
300/150 148 180 300 332 7 0.5 1.51
315/150 148 180 315 347 7 0.6 1.87
350/150 148 180 350 380 7 0.6 2.05
355/150 148 180 355 400 7 0.6 2.1
400/150 148 180 400 440 7 0.6 2.48
450/150 148 180 450 480 7 0.8 2.86
500/150 148 180 500 530 7 0.8 4.33
250/160 158 190 250 282 7 0.5 1.16
300/160 158 190 300 332 7 0.5 1.53
315/160 158 190 315 347 7 0.6 1.85
350/160 158 190 350 380 7 0.6 2.07
355/160 158 190 355 400 7 0.6 2.12
400/160 158 190 400 440 7 0.6 2.48
450/160 158 190 450 480 7 0.8 2.86
500/160 158 190 500 530 7 0.8 4.33
250/180 178 210 250 282 7 0.5 1.27
300/180 178 210 300 332 7 0.5 1.56
315/180 178 210 315 347 7 0.6 1.88
350/180 178 210 350 380 7 0.6 2.09
355/180 178 210 355 400 7 0.6 2.13
400/180 178 210 400 440 7 0.6 2.5
450/180 178 210 450 480 7 0.8 2.88
500/180 178 210 500 530 7 0.8 4.33
250/200 198 230 250 282 7 0.5 1
300/200 198 230 300 332 7 0.5 1.59
315/200 198 230 315 347 7 0.6 1.89
350/200 198 230 350 380 7 0.6 2.26
355/200 198 230 355 400 7 0.6 2.16
400/200 198 230 400 440 7 0.6 2.49
450/200 198 230 450 480 7 0.8 2.88
500/200 198 230 500 530 7 0.8 4.33
300/250 248 280 300 332 7 0.5 1.69
315/250 248 280 315 347 7 0.6 1.95
350/250 248 280 350 380 7 0.6 2.27
355/250 248 280 355 400 7 0.6 2.22
400/250 248 280 400 440 7 0.6 2.49
450/250 248 280 450 480 7 0.6 2.89
500/250 248 280 500 530 7 0.8 4.3
315/300 298 330 315 347 7 0.6 2.16
350/300 298 330 350 380 7 0.6 2.26
355/300 298 330 355 400 7 0.6 2.3
400/300 298 330 400 440 7 0.6 2.58
450/300 298 330 450 480 7 0.8 2.91
500/300 298 330 500 530 7 0.8 4.27
350/315 313 345 350 380 7 0.6 2.3
355/315 313 345 355 400 7 0.6 2.34
400/315 313 345 400 440 7 0.6 2.62
450/315 313 345 450 480 7 0.8 2.91
500/315 313 345 500 530 7 0.8 4.26
355/350 348 378 355 400 7 0.6 2.44
400/350 348 378 400 440 7 0.6 2.65
450/350 348 378 450 480 7 0.8 2.93
500/350 348 378 500 530 7 0.8 4.24
400/355 353 398 400 440 7 0.6 2.66
450/355 353 398 450 480 7 0.8 2.93
500/355 353 398 500 530 7 0.8 4.24
450/400 398 438 450 480 7 0.8 3
500/400 398 438 500 530 7 0.8 4.23
500/450 488 478 500 530 7 0.8 4.28
Note:
Specs 355, 450, 500 use L-shaped rubber rings and steel straps.
