Coupling

Product Number

Enquire

Specification

  1. ∅355/450/500 use L-shaped rubber rings and steel straps.

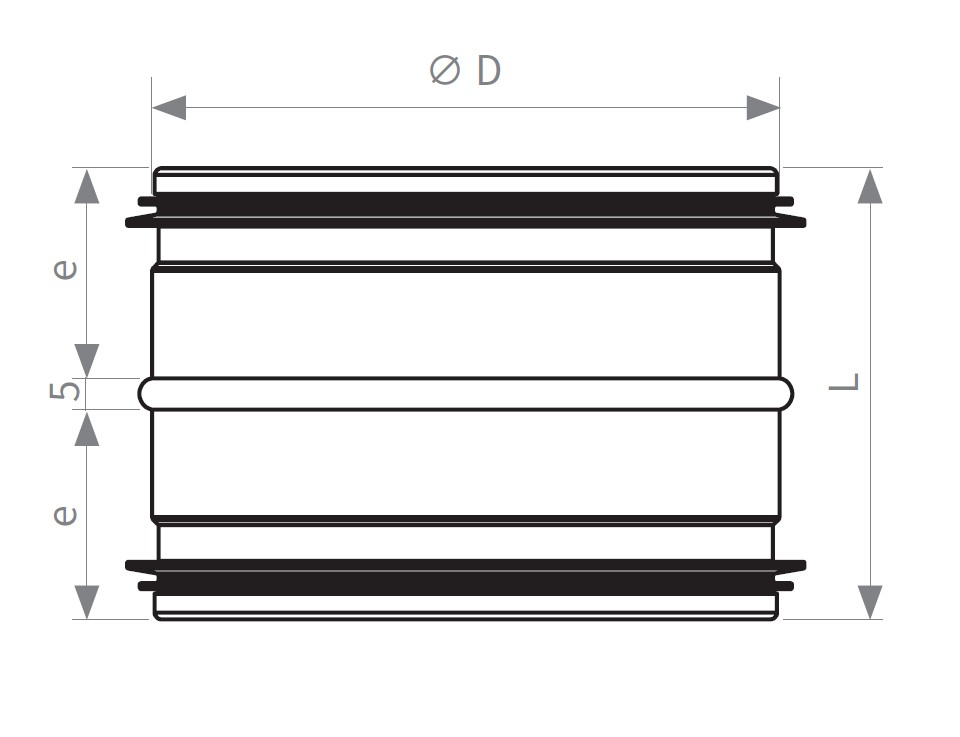

Dimension

Specs D L e t kg
80 78 72 33.5 0.5 0.09
100 98 72 33.5 0.5 0.12
125 123 72 33.5 0.5 0.15
150 148 72 33.5 0.5 0.18
160 158 72 33.5 0.5 0.18
175 173 80 37.5 0.5 0.23
180 178 80 37.5 0.5 0.23
200 198 80 37.5 0.5 0.3
225 223 80 37.5 0.5 0.33
250 248 80 37.5 0.5 0.32
280 278 80 37.5 0.5 0.36
300 298 100 47.5 0.5 0.55
315 313 100 47.5 0.5 0.49
350 348 100 47.5 0.6 0.63
355 353 100 47.5 0.6 0.65
400 398 100 47.5 0.6 0.61
450 448 100 47.5 0.6 0.81
500 498 100 47.5 0.8 1.16
Note:
