Coupling (Insulated)

Product Number

Enquire

Specification

  1. ∅355/450/500 use L-shaped rubber rings and steel straps.

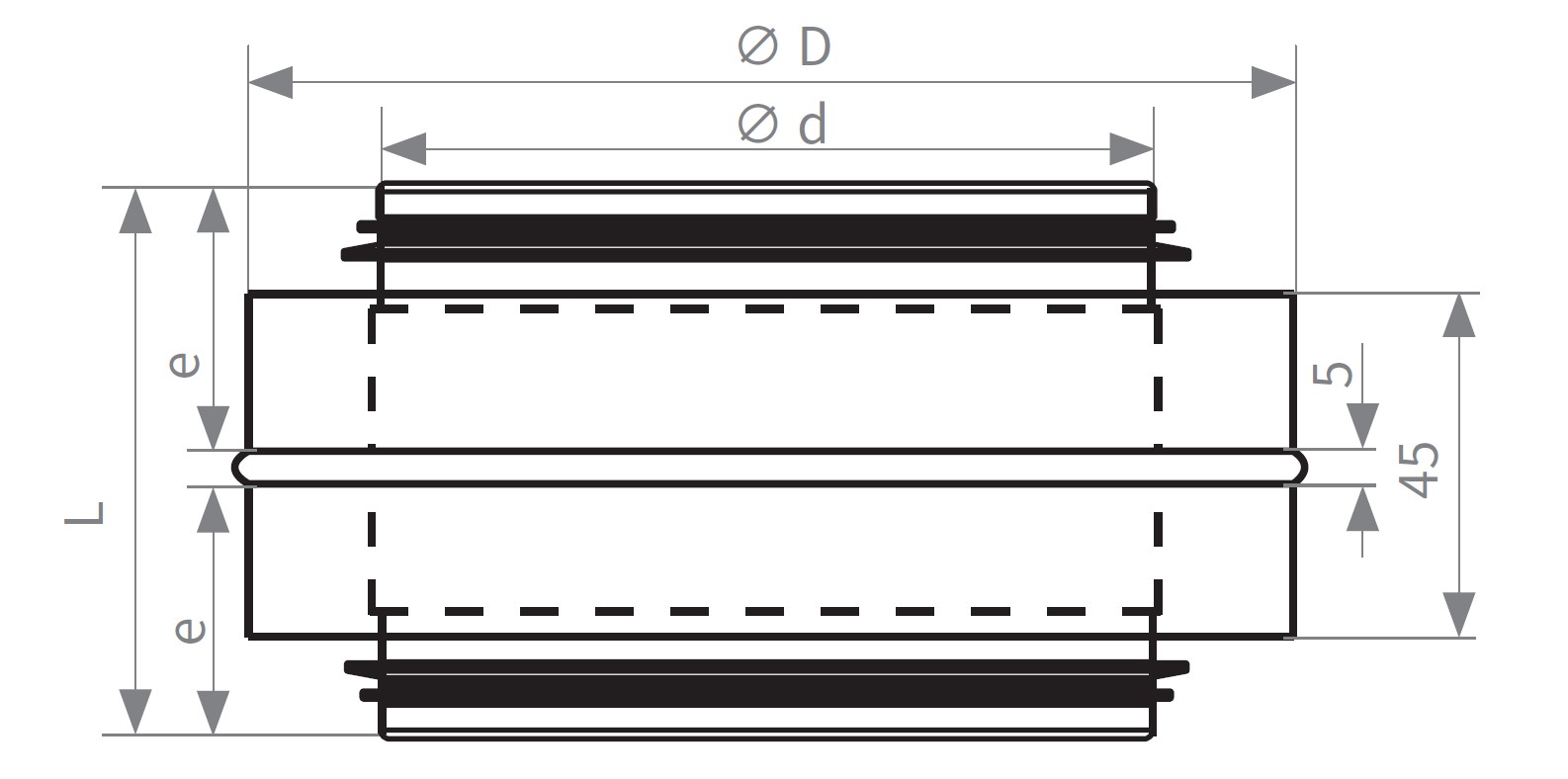

Dimension

Specs d D L e kg
80 78 110 72 33.5 0.15
100 98 130 72 33.5 0.19
125 123 155 72 33.5 0.24
150 148 180 72 33.5 0.27
160 158 190 72 33.5 0.3
175 173 205 80 37.5 0.34
180 178 210 80 37.5 0.35
200 198 230 80 37.5 0.39
225 223 255 80 37.5 0.41
250 248 280 80 37.5 0.48
280 278 310 80 37.5 0.53
300 298 330 100 47.5 0.64
315 313 345 100 47.5 0.66
350 348 378 100 47.5 0.77
355 353 398 100 47.5 0.86
400 398 438 100 47.5 0.9
450 448 478 100 47.5 1.13
500 498 528 100 47.5 1.63
Note:
