Air Return Inlet

Product Number

Enquire

Specification

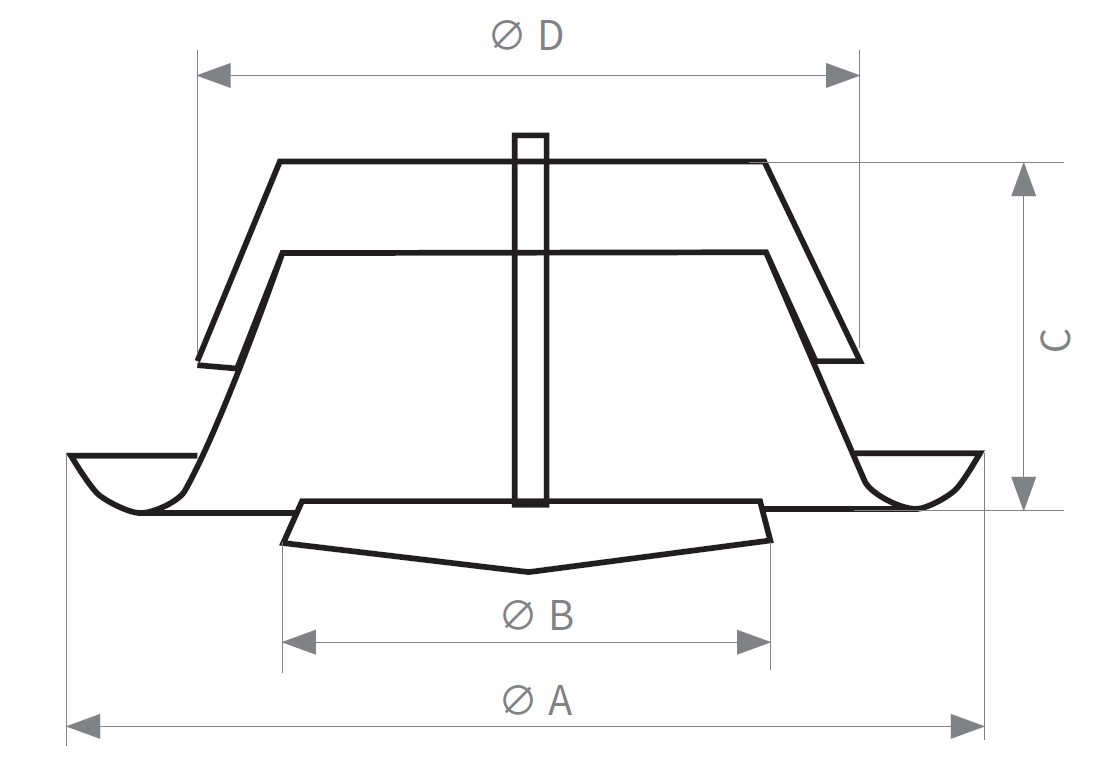

Dimension

Specs A B C D t kg
80 115 62 42 77 0.6 0.17
100 138 75 40 97 0.6 0.23
125 164 100 46 122 0.6 0.34
150 202 120 50 147 0.6 0.4
160 211 130 54 157 0.6 0.44
200 248 158 63 197 0.6 0.57
250 305 215 75 248 0.6 0.91
Note:
